• Wheels, 17" (43.2 cm) painted steel
• Tires, LT235/80R17E all-season highway
• Wheel trim, painted trim skins and painted center caps
• Bumper, front chrome
• Grille, chrome surround
• Headlamps, halogen projector
• Lamps, Smoked Amber roof marker (Not available with (YF5) California state emissions requirements.)
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside high-visibility vertical camper-style, Black with manual folding and extension and lower convex spotter glass
• Glass, solar absorbing, tinted
• Door handles, Black

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB ports, auxiliary jack and SD card slot
• Audio system feature, 4-speaker system
• SiriusXM Satellite Radio, delete

• Seats, front 40/20/40 split-bench 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. (Requires (H2Q) vinyl interior trim or (H2R) cloth, interior trim.)
• Seat trim, Vinyl
• Floor covering, Black rubberized vinyl
• Steering column, manual Tilt-Wheel
• Steering wheel
• Driver Information Center 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Door locks, power
• Cruise control, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars

• Brakes, 4-wheel antilock, 4-wheel disc with dual rear wheel
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right front passenger, single stage (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal passenger-side
• OnStar, delete

SIERRA CONVENIENCE PACKAGE

• includes (DPN) outside heated power-adjustable vertical camper mirrors
• (DD8) inside rearview auto-dimming mirror and (AQQ) Remote Keyless Entry (Includes (A31) power windows.)

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER

• manual-folding and extending
• black. Includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated nor is it power adjustable). Includes (DD8) auto-dimming inside rearview mirror.)

WINDOWS, POWER

• with driver express up and down and express down on all other windows

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

SNOW PLOW PREP PACKAGE

• includes power feed for backup and roof emergency light
• (KW5) 220-amp alternator with gas engine or (KH5) dual 150-amp alternators with diesel engine
• forward lamp wiring harness
• (TRW) Provision for cab roof mounted lamp/beacon
• (NZZ) underbody shield and Heavy Duty Front Springs.

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

UNDERBODY SHIELD

• frame-mounted shields
• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY WITH INTELLILINK, AM/FM STEREO

• with USB ports
• auxiliary jack
• SD card slot
• Bluetooth® streaming audio for music and most phones
• hands-free smartphone integration
• Pandora Internet radio and voice-activated technology for radio and phone

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC

• electronically controlled with overdrive
• electronic engine grade braking and tow/haul mode

SEATS, FRONT 40/20/40 SPLIT-BENCH

• 3-passenger
• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. (STD)

JET BLACK/DARK ASH, CLOTH

• includes manually adjustable driver lumbar

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• B20-Diesel compatible (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake.)

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back up alarm.

PAINT, SOLID

• (STD)

• 3.73 Rear Axle Ratio
• 4.2 In. Infotainment Screen Size
• Dual Front Airbags
• Passenger Switch Airbag Deactivation

• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 2 @ 150
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9750
• Curb Weight - Front (lbs): 4627
• Curb Weight - Front (lbs): 3907
• Curb Weight - Rear (lbs): 2560
• Curb Weight - Rear (lbs): 2529
• Gross Vehicle Weight Rating Cap (lbs): 13200
• Gross Combined Wt Rating (lbs): 30500
• Gross Combined Wt Rating (lbs): 25000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 3-Stage Spring
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 9750
• Spring Capacity - Rear (lbs): 9750
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 9750
• Axle Capacity - Rear (lbs): 9750
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Tires
• Front Tire Order Code: QZT
• Front Tire Order Code: QQO
• Rear Tire Order Code: QZT
• Rear Tire Order Code: QQO
• Front Tire Size: LT235/80R17E
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 2805
• Front Tire Capacity (lbs): 2680
• Rear Tire Capacity (lbs): 2470
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.1
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 23.5
• Aux Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Front
• Aux Fuel Tank Location: Rear
• Exterior Dimensions
• Wheelbase (in): 162.0
• Length, Overall w/o rear bumper (in): 254.0
• Width, Max w/o mirrors (in): - TBD -
• Height, Overall (in): 76.54
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 117.10
• Cab to Axle (in): 83.58
• Cab to End of Frame (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Summary

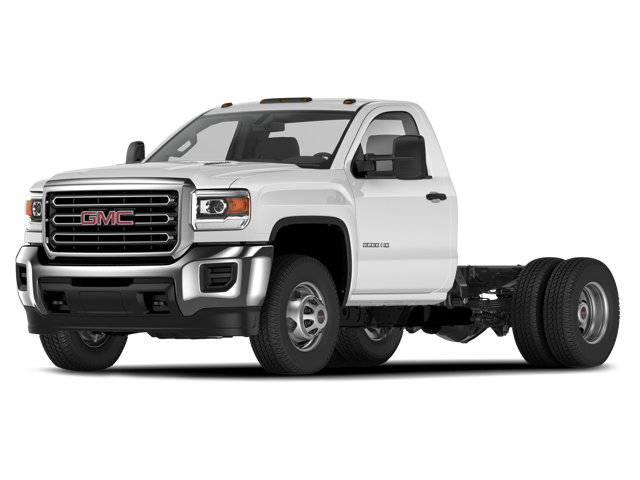

• Vehicle Name: GMC Sierra 3500HD
• Body Style: Reg Cab 162.0" Wheelbase
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
